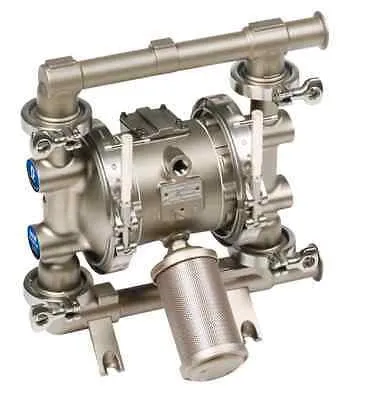

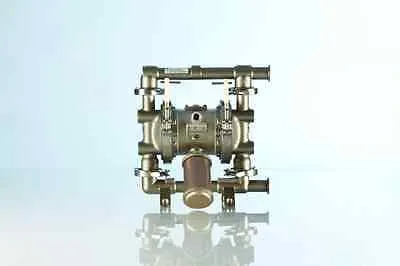

SaniForce 1040 Double Diaphragm Explosion Proof Pump.
Graco’s SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability. These Pumps are great for distilleries and breweries. These pumps will handle thick corn mash no problem. They are also great for high proof spirits. The pump is explosion proof but the air compressor that powers the pump isn't, so the compressor needs to be in another room. These pumps will move heavy grain mashes no problem. You can empty out a 500 gallon fermenter in as little as 12.5 minutes. Air valve adjustment gives you control over pumping speed 5 gpm to 40 gpm.
| SaniForce 1040 Diaphragm Pumps | |
Maximum fluid working pressure | 120 psi 8 bar, 0.8 MPa |
| Air pressure operating range | 20–120 psi 1.4–8 bar, 0.14–0.8 MPa |
| Maximum air consumption | 50 scfm 3 |
| Air consumption at 70 psi, 20 gpm | 41 scfm 3 |
| Maximum free-flow delivery | 41 gpm 159 lpm |
| Maximum pump speed | 256 cpm 256 cpm |
| Gallons/liters per cycle* | 0.16 g 0.57 l |
| Maximum suction lift | 29 ft wet, 16 ft dry 8.8 m wet, 4.9 m dry |
| Maximum size pumpable solids | 1/8 in 3.2 mm |
| Maximum fluid operating temperature for this model is 220°F | |
| 104°C | |
| Inlet/Outlet Sizes | |
| Air inlet size | 0.5 in npt(f) 0.5 in npt(f) |
| Fluid inlet size | 1.5 in sanitary flange 1.5 in sanitary flange |
| Fluid outlet size | 1.5 in sanitary flange 1.5 in sanitary flange |
Wetted Parts*** | |
All fluid contact materials are FDA-compliant and meet the United States Code of Federal Regulations (CFR) Title 21, Section 177. | |
Wetted materials on all models | stainless steel stainless steel |
| Wetted materials depending on this model | EPDM, PTFE, EPDM, Polychloroprene, PTFE, Santoprene |
| | |
